LED TRIAC Dimmer Switch 630W Wall Dimmer 220V AC
LED TRIAC Dimmer Switch 630W Wall Dimmer 220V AC
LED TRIAC Dimmer Switch 630W Wall Dimmer 220V AC
LED TRIAC Dimmer Switch 630W Wall Dimmer 220V AC
LED TRIAC Dimmer Switch 630W Wall Dimmer 220V AC
LED TRIAC Dimmer Switch 630W Wall Dimmer 220V AC
LED TRIAC Dimmer Switch 630W Wall Dimmer 220V AC
LED TRIAC Dimmer Switch 630W Wall Dimmer 220V AC
LED TRIAC Dimmer Switch 630W Wall Dimmer 220V AC
LED TRIAC Dimmer Switch 630W Wall Dimmer 220V AC
LED TRIAC Dimmer Switch 630W Wall Dimmer 220V AC
LED TRIAC Dimmer Switch 630W Wall Dimmer 220V AC
LED TRIAC Dimmer Switch 630W Wall Dimmer 220V AC
LED TRIAC Dimmer Switch 630W Wall Dimmer 220V AC

LED TRIAC Dimmer Switch 630W Wall Dimmer 220V AC

CERoHS
OEM
Product code: 8400000002028
Availability:

In stock

Availability by shop

Checking shop availability…

Login to view price

Product description

The LED TRIAC Dimmer 630W Wall Dimmer provides smooth, precise control over the lighting intensity in LED installations. Compatible with TRIAC-dimmable luminaires and drivers (Leading Edge and Trailing Edge), it delivers stable operation and continuous adjustment via a practical rotary knob.Made from flame-retardant thermoplastic with IP20 protection. Maximum power 630W – ideal for homes, offices, shops, hotels and restaurants. Improves visual comfort and optimises energy consumption.

Technical specifications

Electrical

Nominal Voltage
AC220-240V
Frequency (Hz)
50/60Hz

Energy & Compliance

Certifications
CE, RoHS
Warranty Years
5
Energy Rating (2021-UE-2019/2015)
A+
IP
IP20

Physical & Construction

Construction Material
Flame retardant thermoplastic

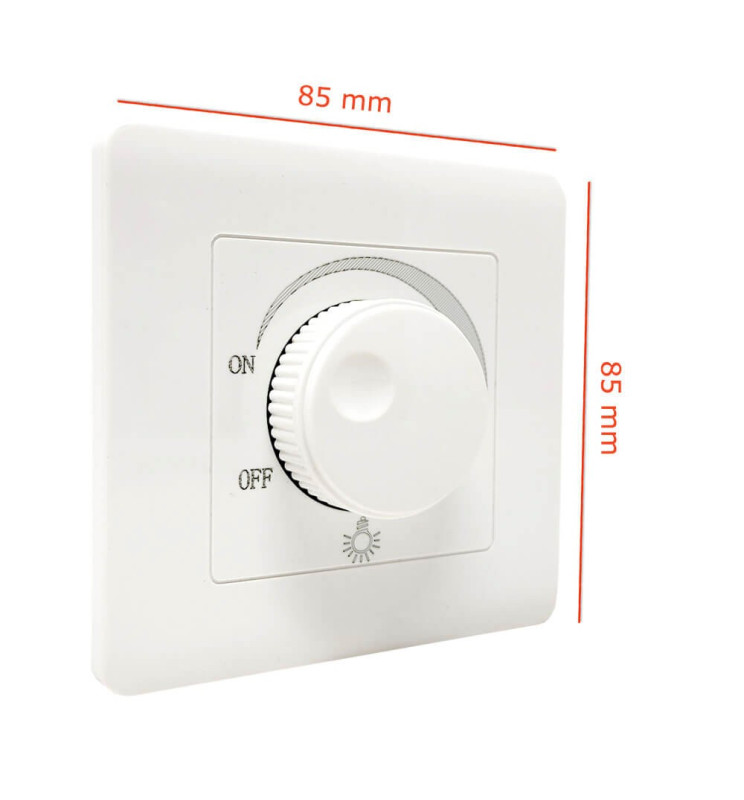

Dimensions (mm)
W85 x L85 x H46
Temperature Range (ºC)
-20ºC ~ +55ºC

Lighting Performance

Rated Power
600W
Dimmable
TRIAC
On/Off Cycles
100.000h
Starting Time (s)
0,2s

Packaging & Reference

REFERENCE
1272
