Mini switch + Dimmer - for LED strips in 12/24V profile.

Touch switch + dimmer to regulate the switching on and off of 12 and 24 volt LED strips housed in aluminium profiles and also to regulate their light intensity from 100% to off.

Simple operation:

- At the moment of switching on the strip is switched off.

- With a short press, the device switches the strip on or off (one press to switch on and one press to switch off).

- With a long press, the device allows you to progressively adjust the light intensity of the strip, from off to 100% brightness.

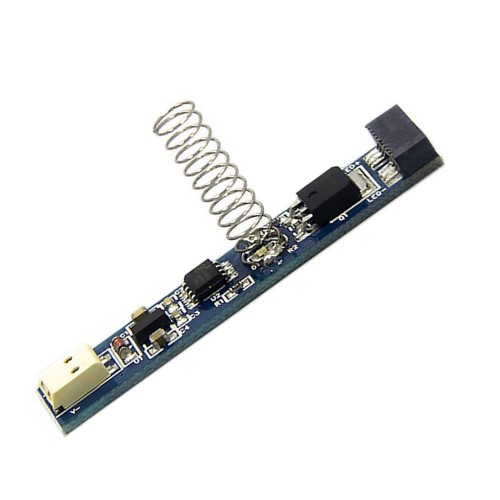

The device is housed inside the profile and, thanks to an optical sensor, it detects finger touches on the opaque diffuser. Easy connection by means of a quick connector, without the need for soldering.

DATA SHEET
REFERENCE:2680-TC	IP :IP20	Rated Power :DC12V -72W / DC24V-144W	Diode Life Expectancy (H):50	Nominal Voltage:DC 12-24V	Dimensions (mm):L43*H13mm	Construction Material:Thermoplastic	Temperature Range (ºC):-20°C ~ +55°C	Starting Time (s):0,2s	Warranty Years:3	Certifications:CE - ROHS
