Motion Detector AC220-240V
Motion Detector AC220-240V
Motion Detector AC220-240V
Motion Detector AC220-240V
Motion Detector AC220-240V
Motion Detector AC220-240V
Motion Detector AC220-240V
   0 reviews  |  Write a review
Product Code: 3780
Availability:In Stock
CE RoHS
Brightness Calculator

Qty

Wishlist Compare

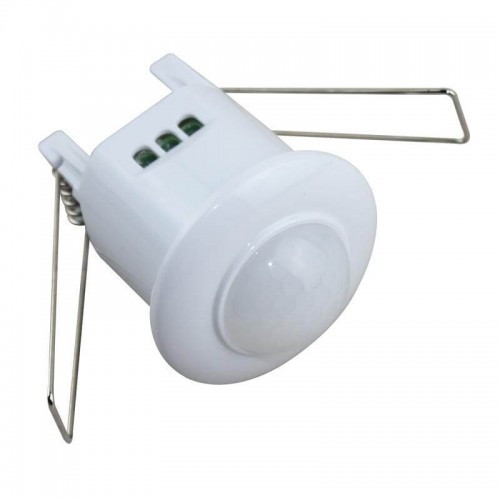

Small built-in motion Detector. It uses the local as a form of detection. Adjustable time and brightness. It incorporates a timer of at least 5 seconds to 7 minutes. Range of detection 360 ° and a distance of 6 metres approximately.

DATA SHEET
REFERENCE:REFERENCE:3780 IP :IP :IP20 Rated Power :Rated Power :Max. 800W (incandescent). 400W (LED) Diode Life Expectancy (H):Diode Life Expectancy (H):30000 Nominal Voltage:Nominal Voltage:220-240 V AC Dimensions (mm):Dimensions (mm):Φ53*H64mm, Frequency (Hz):Frequency (Hz):50/60Hz Construction Material:Construction Material:Flame retardant thermoplastic Temperature Range (ºC):Temperature Range (ºC):-20~+40C On/Off Cycles:On/Off Cycles:100000 Starting Time (s):Starting Time (s):0,2s Other Information:Other Information:3-2000 LUx (adjustable) Beam Angle (º):Beam Angle (º):360º Warranty Years:Warranty Years:2 Certifications:Certifications:CE - ROHS Cut-out Size (mm)Cut-out Size (mm)Φ40mm Control modesControl modesInfrared Range (m):Range (m):6 m.
