Motion Detector AC220-240V 180º/360ª

0 reviews | Write a review

Product Code: 3783
Availability:In Stock

Brightness Calculator

Qty

Wishlist Compare

Description Specification Reviews (0)

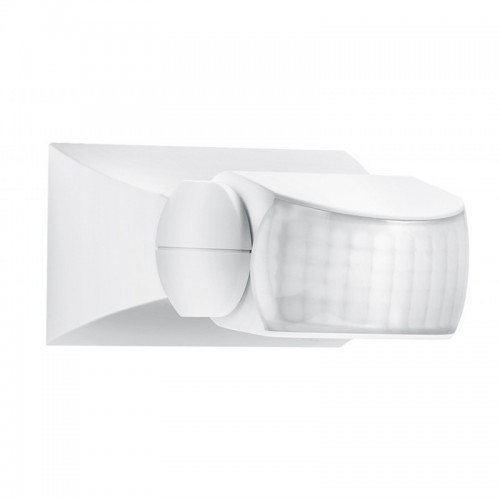

Adjustable surface motion detector that allows adjusting the on time, stopping range and light sensitivity. It has a 360º coverage angle and a detection field of up to 6 meters.

The output and input voltage covers a range between 220-240V.

It uses infrared as an activation source when entering the detection field, it has a twilight detector incorporated. The detector is capable of capturing invisible infrared emissions from any heat source without emitting any type of radiation.

It is activated when a heat source moves in front of the switch. In the same way, it is deactivated once the device stops capturing heat. It integrates a timer with the possibility of changing from 5 seconds to 7 minutes.

Includes the necessary screws for mounting. Ideal for automatic lighting for luminaires in corridors, stairs, bathrooms, testers, etc ... 2 year warranty.

DATA SHEET
REFERENCE:3783	Rated Power :Max. 1200W (incandescent). 300W (LED.)	Diode Life Expectancy (H):30000	Nominal Voltage:220V-240V	Dimensions (mm):4439.522.5 mm	Frequency (Hz):50/60Hz	Construction Material:Flame retardant thermoplastic	Temperature Range (ºC):-20°C ~ +55°C	On/Off Cycles:100000	Starting Time (s):0,2s	Beam Angle (º):180°/360°	Warranty Years:2	Certifications:CE - ROHS	Control modesInfrared	Range (m):6 m.
