Product Code: SENSOR-SHARK
Availability:In Stock

Qty

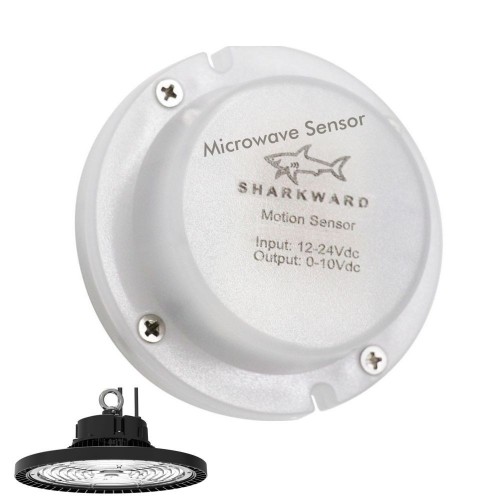

Motion Detector -  High Bay - UFO SHARK INTELLIGENT

Exclusive motion detector for the UFO Smart LED High Bay.

Installation is very simple thanks to the connection pins that fit perfectly into the base of the Intelligent UFO LED High Bay. Once the pins have been inserted, all you have to do is turn it around a little so that it is completely installed.

The motion detector works with the remote control that we sell separately.

Our motion sensor that dims lighting from high to low based on movement.
This slim, low-profile sensor is designed for installation inside the bottom of a light fixture body- UFO High bay-.

The sensors use microwave sensing technology that reacts to changes in movement within the coverage area.

Once the sensor stops detecting movement and the time delay elapses lights will go from high to low mode and eventually to an OFF position if it is desired.

 Sensors must directly “see” motion of a person or moving object to
detect them, so careful consideration must be given to sensor luminaire placement and lens selection.

Avoid placing the sensor where obstructions may block the sensor’s line of sight.


NOTE 1: The warm-up time is 15 seconds. After the sensor connects input power for the first time, the light will stay on for 15 seconds and then dim to work normally.

NOTE 2: Factory default setting: 100% sensitivity, timeout: 5 min, daylight sensor is (Symbol Sun), dimming level: 30%, fade time: 60 minutes.

NOTE 3: Any setting changed by remote control, the led light that sensor connect will on/off as confirm.

This product has a 5-year warranty

DATA SHEET
REFERENCE:REFERENCE:UFO-SENSOR IP :IP :IP65-Outdoor Nominal Voltage:Nominal Voltage:12V 0.03A Dimensions (mm):Dimensions (mm):Ø60H30mm Construction Material:Construction Material:Thermoplastic Energy Rating:Energy Rating:A+ Other Information:Other Information:MICROWAVE 5.8GHz Beam Angle (º):Beam Angle (º):150º Warranty Years:Warranty Years:5 Certifications:Certifications:CE - ROHS Accessories and ComplementsAccessories and ComplementsMando a Distancia DimmableDimmableYES Range (m):Range (m):15m
